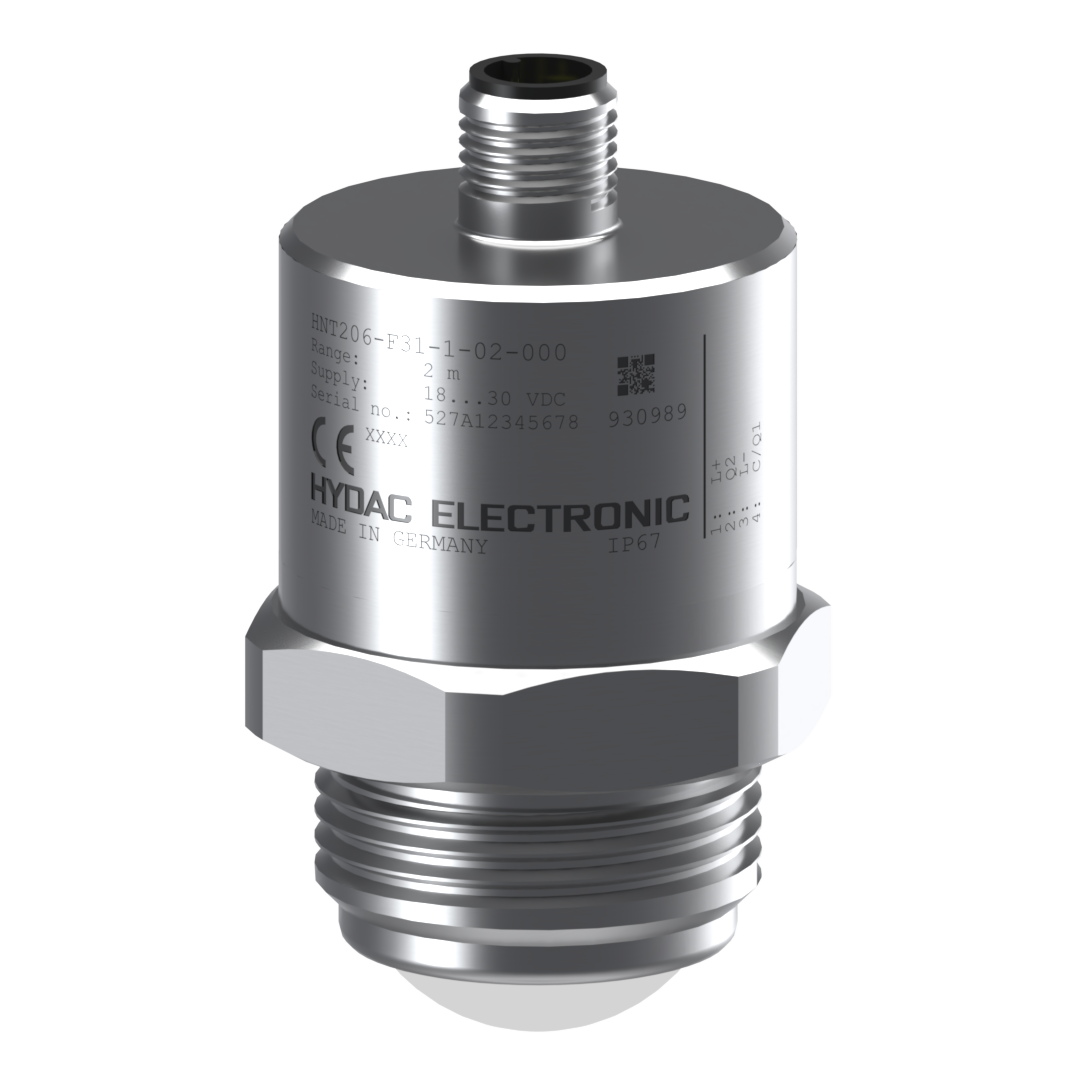

HNT 200 – Radar, continuous measurement, industrial

Radar fill level sensor
Housing stainless steel, HD lens PE
PFAS-free (forever chemicals)
Compact design
- Wrench size 41
- Screw-in thread G1"
For oils, emulsions, aqueous fluids, bulk solids, chips, and much more
Measuring range 2 m, 5 m, 10 m, 15 m
Resolution 1 mm
Accuracy < ± 2 mm
2 electrical outputs
- PNP, NPN, Push-Pull – switchable
- IO-Link
- Switching current 250 mA
IO-Link smart sensor profile DMSS
Options
- WHG certification (Federal Water Act)

Downloads for this category

CAD data can’t be found at the product category level. Instead, it can be found directly at an individual product level.

Document type

Language

Product brochure EN
