    • 2 directions / 2 positions
    • Directional poppet valve
    • Normally closed
    • Allows flow through one side
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    5 - 350 1 - 19 Cartridge WS06Z To the product
    0 - 350, 5 - 350 0 - 3, 0 - 40, 2 - 40 Cartridge WSM06020Z, WSM06020Z-70 To the product
    5 - 350 2 - 38 Cartridge WS08Z To the product
    5 - 350 4 - 75 Cartridge WSM10120Z To the product
    5 - 350 4 - 75 Cartridge WS10Z To the product
    5 - 350 5.5 - 110 Cartridge WSM12120Z To the product
    5 - 350 5.5 - 110 Cartridge WS12Z To the product
    5 - 350 7.5 - 150 Cartridge WS16Z To the product
    • 2 directions / 2 positions
    • Directional poppet valve
    • Normally closed
    • Capable of flow in both directions
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    5 - 350 1 - 19 Cartridge WS06ZR To the product
    5 - 350 2 - 40 Cartridge WSM06020ZR To the product
    5 - 350 2 - 38 Cartridge WS08ZR To the product
    5 - 350 4 - 75 Cartridge WSM10120ZR To the product
    5 - 350 4 - 75 Cartridge WS10ZR To the product
    5 - 350 5.5 - 110 Cartridge WSM12120ZR To the product
    5 - 350 5.5 - 110 Cartridge WS12ZR To the product
    5 - 350 7.5 - 150 Cartridge WS16ZR To the product
    • 2 directions / 2 positions
    • Directional poppet valve
    • Normally closed
    • Capable of flow in both directions
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    5 - 350 2 - 40 Cartridge WS08BR To the product
    5 - 350 5.5 - 110 Cartridge WSM12120BR To the product
    • 2 directions / 2 positions
    • Directional poppet valve
    • Normally closed
    • Capable of flow in both directions
    • Blocking flow in both directions
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 250 0 - 19 Cartridge WSM06020W To the product
    0 - 350 0 - 25 Cartridge WS08W-61, WSM06020W-61 To the product
    0 - 250 0 - 19 Cartridge WS08W To the product
    0 - 350 0 - 40 Cartridge WSM10120W To the product
    0 - 350 0 - 40 Cartridge WS10W To the product
    5 - 350 5.5 - 110 Cartridge WS12W To the product
    5 - 350 5.5 - 110 Cartridge WSM12120W To the product
    5 - 420 17.5 - 350 Cartridge WSM20121W To the product
    0 - 350 0 - 25 Manifold-mounted 2WSE 6 E2, 2WSE 6 E4 To the product
    • 2 directions / 2 positions
    • Directional poppet valve
    • Normally open
    • Allows flow through one side
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    5 - 350 1 - 19, 1 - 20 Cartridge WS06Y To the product
    0 - 350, 5 - 350 0 - 3, 2 - 40 Cartridge WSM06020Y, WSM06020Y-70 To the product
    5 - 350 2 - 38 Cartridge WS08Y To the product
    5 - 350 4 - 75 Cartridge WSM10120Y To the product
    5 - 350 4 - 75 Cartridge WS10Y To the product
    5 - 350 5.5 - 110 Cartridge WSM12120Y To the product
    5 - 350 5.5 - 110 Cartridge WS12Y To the product
    5 - 350 7.5 - 150 Cartridge WS16Y To the product
    • 2 directions / 2 positions
    • Directional poppet valve
    • Normally open
    • Capable of flow in both directions
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    5 - 350 1 - 19 Cartridge WS06YR To the product
    5 - 350 2 - 40 Cartridge WSM06020YR To the product
    5 - 350 2 - 38 Cartridge WS08YR To the product
    5 - 350 4 - 75, 5.5 - 110 Cartridge WSM10120YR, WSM12120YR To the product
    5 - 350 4 - 75 Cartridge WS10YR To the product
    5 - 350 5.5 - 110 Cartridge WSM12120YR To the product
    5 - 350 5.5 - 110 Cartridge WS12YR To the product
    5 - 350 7.5 - 150 Cartridge WS16YR To the product
    • 2 directions / 2 positions
    • Directional poppet valve
    • Normally open
    • Capable of flow in both directions
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 20 Cartridge WSM06020V To the product
    0 - 350 0 - 20 Cartridge WS08V To the product
    0 - 350 0 - 40 Cartridge WSM10120V To the product
    0 - 350 0 - 40 Cartridge WS10V To the product
    5 - 350 5.5 - 110 Cartridge WSM12120V To the product
    5 - 420 17.5 - 350 Cartridge WSM20121V To the product
    0 - 350 0 - 25 Manifold-mounted 2WSE 6 BE2, 2WSE 6 BE4 To the product
    • 3 directions / 2 positions
    • Directional poppet valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 500 0 - 12 Cartridge WSM03230C To the product
    0 - 350 0 - 22 Cartridge WSM08130C To the product
    0 - 350 0 - 22 Cartridge WS08C To the product
    • 3 directions / 2 positions
    • Directional poppet valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Manifold-mounted 3WSE 6 X To the product
    • 3 directions / 2 positions
    • Directional poppet valve
    • Normally open
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 500 0 - 12 Cartridge WSM03230D To the product
    0 - 350 0 - 22 Cartridge WSM08130D To the product
    0 - 350 0 - 23 Cartridge WS08D To the product
    0 - 280 0 - 20 Cartridge WS08D-51 To the product
    • 3 directions / 2 positions
    • Directional poppet valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Manifold-mounted 3WSE 6 C To the product
    • 3 directions / 3 positions
    • Directional poppet valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Manifold-mounted 3WSE 6 E To the product
    • 3 directions / 4 positions
    • Directional poppet valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Manifold-mounted 3WSE 6 EH To the product
    • 4 directions / 2 positions
    • Directional poppet valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Manifold-mounted 4WSE 6 X To the product
    • 4 directions / 2 positions
    • Directional poppet valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Manifold-mounted 4WSE 6 C To the product
    • 4 directions / 3 positions
    • Directional poppet valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Manifold-mounted 4WSE 6 E To the product
    • 4 directions / 3 positions
    • Directional poppet valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Manifold-mounted 4WSE 6 H To the product

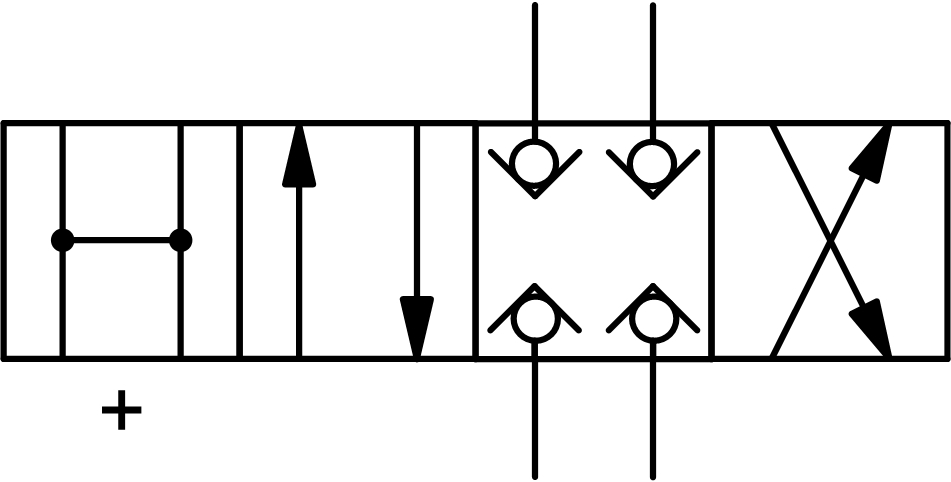

    • 4 directions / 4 positions
    • Directional poppet valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Manifold-mounted 4WSE 6 EH To the product
    • 4 directions / 4 positions
    • Directional poppet valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Manifold-mounted 4WSE 6 JM To the product
    • 2 directions / 2 positions
    • Directional spool valve
    • Normally closed
    • Capable of flow in both directions
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 10 Cartridge WK06W To the product
    0 - 350 0 - 19 Cartridge WK08W To the product
    0 - 350 0 - 35 Cartridge WK10W To the product
    • 2 directions / 2 positions
    • Directional spool valve
    • Normally open
    • Capable of flow in both directions
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 15 Cartridge WK06V To the product
    0 - 350 0 - 19 Cartridge WK08V To the product
    0 - 350 0 - 35 Cartridge WK10V To the product
    • 3 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 10 Cartridge WK07L To the product
    0 - 350 0 - 17 Cartridge WK08L To the product
    0 - 350 0 - 32 Cartridge WK10L To the product
    • 3 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 50 0 - 8 Cartridge WK08L-55 To the product
    • 3 directions / 2 positions
    • Directional spool valve
    • Normally open
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 10 Cartridge WK06C To the product
    0 - 350 0 - 25 Cartridge WKM08130C To the product
    0 - 350 0 - 19 Cartridge WK08C To the product
    0 - 350 0 - 32 Cartridge WK10C To the product
    0 - 250 0 - 60 Cartridge WK12C To the product
    • 3 directions / 2 positions
    • Directional spool valve
    • Normally open
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 60 0 - 25 Cartridge valves WKC05S30C To the product
    • 3 directions / 2 positions
    • Directional spool valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Cartridge WKM08130D To the product
    0 - 350 0 - 19 Cartridge WK08D To the product
    0 - 350 0 - 32 Cartridge WK10D To the product
    • 3 directions / 2 positions
    • Directional spool valve
    • Normally closed

    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Cartridge WKM08130D-13 To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 19 Cartridge WK08A To the product
    0 - 350 0 - 32 Cartridge WK10A To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 70 Manifold-mounted 4WE 6 AE To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 10 Cartridge WK06Y To the product
    0 - 350 0 - 25 Cartridge WKM08140Y To the product
    0 - 350 0 - 19 Cartridge WK08Y To the product
    0 - 350 0 - 32 Cartridge WK10Y To the product
    0 - 250 0 - 60 Cartridge WK12Y To the product
    • 4 directions / 2 positions
    • Directional spool valve / directional poppet valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 250 0 - 52 Cartridge WK10Y-40 To the product
    0 - 320, 0 - 350 0 - 70 Manifold-mounted 4WE 6 Y, 4WE 6 Y 08 To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 Y To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Cartridge WKM08140X To the product
    0 - 350 0 - 17 Cartridge WK08X To the product
    0 - 350 0 - 32 Cartridge WK10X To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 320, 0 - 350 0 - 80 Manifold-mounted 4WE 6 D, 4WE 6 D 08 To the product
    0 - 350 0 - 40 Manifold-mounted 4WEW 6 D To the product
    0 - 350 0 - 80 Manifold-mounted 4WER0 6 D, 4WERA 6 D To the product
    0 - 280, 0 - 350 0 - 35, 0 - 80 Manifold-mounted 4WE 6 D-OF, 4WE 6 D-OF S08 To the product
    0 - 320, 0 - 350 0 - 60, 0 - 70 Manifold-mounted 4WE 6 C, 4WE 6 C 08 To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 D To the product
    0 - 350 0 - 160 Manifold-mounted 4WEW 10 D To the product
    0 - 320 0 - 120 Manifold-mounted 4WERA 10 D To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 D To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 C To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 20 Manifold-mounted 4WE 6 DB To the product
    • 4 directions / 2 positions
    • Directional spool valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 19 Cartridge WK08Z To the product
    0 - 350 0 - 32 Cartridge WK10Z To the product
    0 - 250 0 - 60 Cartridge WK12Z To the product
    • 4 directions / 2 positions
    • Directional spool valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 25 Cartridge WKM08140EB To the product
    • 4 directions / 2 positions
    • Directional spool valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 320, 0 - 350 0 - 80 Manifold-mounted 4WE 6 EA, 4WE 6 EA 08 To the product
    0 - 350 0 - 80 Manifold-mounted 4WERA 6 EA To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 EA To the product
    0 - 320 0 - 120 Manifold-mounted 4WER0 10 EA To the product
    • 4 directions / 2 positions
    • Directional spool valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 320, 0 - 350 0 - 80 Manifold-mounted 4WE 6 EB, 4WE 6 EB 08 To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 EB To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 32 Cartridge WK10JB To the product
    0 - 320, 0 - 350 0 - 80 Manifold-mounted 4WE 6 JB, 4WE 6 JB 08 To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 320, 0 - 350 0 - 80 Manifold-mounted 4WE 6 JA, 4WE 6 JA 08 To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 JA To the product
    0 - 350 0 - 160 Manifold-mounted 4WEW 10 JA To the product
    • 2 directions / 2 positions
    • Directional spool valve
    • Normally closed
    • Capable of flow in both directions
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 15 Cartridge WK08K To the product
    0 - 350 0 - 32 Cartridge WK10K To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 32 Cartridge WK10N To the product
    0 - 320 0 - 40 Manifold-mounted 4WE 6 GB 08 To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 320, 0 - 350 0 - 50 Manifold-mounted 4WE 6 GA, 4WE 6 GA 08 To the product
    0 - 350 0 - 70 Manifold-mounted 4WER0 6 GA To the product
    0 - 350 0 - 80 Manifold-mounted 4WE 10 GA To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 15 Cartridge WK08P To the product
    0 - 350 0 - 32 Cartridge WK10P To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 19 Cartridge WK08R To the product
    0 - 350 0 - 32 Cartridge WK10R To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 320, 0 - 350 0 - 80 Manifold-mounted 4WE 6 HA, 4WE 6 HA 08 To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 HA To the product
    0 - 350 0 - 160 Manifold-mounted 4WEW 10 HA To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 320, 0 - 350 0 - 80 Manifold-mounted 4WE 6 HB, 4WE 6 HB 08 To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 80 Manifold-mounted 4WE 6 DT To the product
    • 4 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 15 Manifold-mounted 4WE 6 YT To the product
    • 4 directions / 3 positions
    • Directional spool valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 11 Cartridge WK06E To the product
    0 - 350 0 - 23 Cartridge WK10E To the product
    0 - 320, 0 - 350 0 - 60, 0 - 80 Manifold-mounted 4WE 6 E, 4WE 6 E 08 To the product
    0 - 350 0 - 80 Manifold-mounted 4WEW 6 E To the product
    0 - 350 0 - 80 Manifold-mounted 4WER0 6 E To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 E To the product
    0 - 350 0 - 160 Manifold-mounted 4WEW 10 E To the product
    • 4 directions / 3 positions
    • Directional spool valve
    • Depressurised circulation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 7 Cartridge WK06G To the product
    0 - 350 0 - 23 Cartridge WK10G To the product
    0 - 320, 0 - 350 0 - 30, 0 - 50 Manifold-mounted 4WE 6 G, 4WE 6 G 08 To the product
    0 - 350 0 - 40 Manifold-mounted 4WEW 6 G To the product
    0 - 350 0 - 70 Manifold-mounted 4WER0 6 G To the product
    0 - 350 0 - 80 Manifold-mounted 4WE 10 G To the product
    • 4 directions / 3 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 9 Cartridge WK06H To the product
    0 - 350 0 - 23 Cartridge WK10H To the product
    0 - 320, 0 - 350 0 - 60, 0 - 80 Manifold-mounted 4WE 6 H, 4WE 6 H 08 To the product
    0 - 350 0 - 50 Manifold-mounted 4WEW 6 H To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 H To the product
    0 - 350 0 - 160 Manifold-mounted 4WEW 10 H To the product
    • 4 directions / 3 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 11 Cartridge WK06J To the product
    0 - 350 0 - 20 Cartridge WK08J To the product
    0 - 350 0 - 23 Cartridge WK10J To the product
    0 - 320, 0 - 350 0 - 60, 0 - 80 Manifold-mounted 4WE 6 J, 4WE 6 J 08 To the product
    0 - 350 0 - 80 Manifold-mounted 4WER0 6 J To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 J To the product
    0 - 350 0 - 160 Manifold-mounted 4WEW 10 J To the product
    • 4 directions / 3 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 80 Manifold-mounted 4WE 6 JR To the product
    • 4 directions / 3 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 23 Cartridge WK10T To the product
    • 4 directions / 3 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 80 Manifold-mounted 4WE 6 L To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 L To the product
    • 4 directions / 3 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 80 Manifold-mounted 4WE 6 M To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 M To the product
    • 4 directions / 3 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 320, 0 - 350 0 - 60 Manifold-mounted 4WE 6 Q, 4WE 6 Q 08 To the product
    0 - 350 0 - 80 Manifold-mounted 4WEW 6 Q To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 Q To the product
    • 4-way / 3 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 50 Manifold-mounted 4WE 6 R To the product
    0 - 350 0 - 160 Manifold-mounted 4WE 10 R To the product
    • 4 directions / 3 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 80 Manifold-mounted 4WE 6 U To the product
    • 2 directions / 2 positions
    • Directional spool valve
    • Normally closed
    • Capable of flow in both directions
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    15 - 350 0 - 40 Cartridge WKH10W/14 To the product
    • 2 directions / 2 positions
    • Directional spool valve
    • Normally open
    • Capable of flow in both directions
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    15 - 350 0 - 40 Cartridge WKH10V/14 To the product
    • 3 directions / 2 positions
    • Directional spool valve
    • Normally open
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    15 - 50 0 - 5 Cartridge WKH10C To the product
    15 - 350 0 - 40 Cartridge WKH10C/14-11 To the product
    • 3 directions / 2 positions
    • Directional spool valve
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    15 - 350 0 - 15 Cartridge WKH05330 To the product
    • 3 directions / 2 positions
    • Directional spool valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    15 - 350 0 - 40 Cartridge WKH10D/14-11 To the product
    • 3 directions / 3 positions
    • Directional spool valve
    • Normally closed
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    15 - 350 0 - 45 Cartridge WKH10DC/24-14 To the product
    • 4 directions / 2 positions
    • Directional spool valve
    • Hydraulic operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    5 - 320 0 - 150 Manifold-mounted 4WH 10 D, 4WH E 10 D To the product
    12 - 350 0 - 300 Manifold-mounted 4WH E 16 D To the product
    5 - 320 0 - 600 Manifold-mounted 4WH E 25 D To the product
    12 - 350 0 - 700 Manifold-mounted 4WH E 32 D To the product
    • 4 directions / 3 positions
    • Directional spool valve
    • Normally closed
    • Hydraulic operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    5 - 320 0 - 150 Manifold-mounted 4WH E 10 E To the product
    12 - 350 0 - 300 Manifold-mounted 4WH E 16 E To the product
    5 - 320 0 - 600 Manifold-mounted 4WH E 25 E To the product
    12 - 350 0 - 700 Manifold-mounted 4WH E 32 E To the product
    • 4 directions / 3 positions
    • Directional spool valve
    • Depressurised circulation
    • Hydraulic operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    5 - 320 0 - 120 Manifold-mounted 4WH E 10 G To the product
    12 - 350 0 - 300 Manifold-mounted 4WH E 16 G To the product
    5 - 320 0 - 500 Manifold-mounted 4WH E 25 G To the product
    12 - 350 0 - 900 Manifold-mounted 4WH E 32 G To the product
    • 4 directions / 3 positions
    • Directional spool valve
    • Hydraulic operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    5 - 320 0 - 150 Manifold-mounted 4WH E 10 H To the product
    12 - 350 0 - 300 Manifold-mounted 4WH E 16 H To the product
    5 - 320 0 - 600 Manifold-mounted 4WH E 25 H To the product
    12 - 350 0 - 900 Manifold-mounted 4WH E 32 H To the product
    • 4 directions / 3 positions
    • Directional spool valve
    • Hydraulic operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    5 - 320 0 - 150 Manifold-mounted 4WH E 10 J To the product
    12 - 350 0 - 300 Manifold-mounted 4WH E 16 J To the product
    5 - 320 0 - 600 Manifold-mounted 4WH E 25 J To the product
    12 - 350 0 - 700 Manifold-mounted 4WH E 32 J To the product
    • 2 directions / 2 positions
    • Directional poppet valve
    • Normally closed
    • Capable of flow in both directions
    • Blocking flow in both directions
    • Manual operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 250 0 - 19 Cartridge WSM06020W To the product
    0 - 250 0 - 19 Cartridge WS08W To the product
    • 2 directions / 2 positions
    • Directional poppet valve
    • Normally open
    • Capable of flow in both directions
    • Manual operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 20 Cartridge WS08V To the product
    • 3 directions / 2 positions
    • Directional spool valve
    • Normally open
    • Manual operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 19 Cartridge WK08C To the product
    • 4 directions / 2 positions
    • Directional spool valve
    • Manual operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 75 Manifold-mounted 4WMH 6 D To the product
    0 - 320 0 - 150 Manifold-mounted 4WMH 10 D To the product
    • 4 directions / 2 positions
    • Directional spool valve
    • Normally closed
    • Manual operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 75 Manifold-mounted 4WMH 6 EA To the product
    • 4 directions / 3 positions
    • Directional spool valve
    • Normally closed
    • Manual operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 75 Manifold-mounted 4WMH 6 E To the product
    0 - 320 0 - 150 Manifold-mounted 4WMH 10 E To the product
    • 4 directions / 3 positions
    • Directional spool valve
    • Depressurised circulation
    • Manual operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 70 Manifold-mounted 4WMH 6 G To the product
    • 4 directions / 3 positions
    • Directional spool valve
    • Manual operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 75 Manifold-mounted 4WMH 6 H To the product
    0 - 320 0 - 150 Manifold-mounted 4WMH 10 H To the product
    • 4 directions / 3 positions
    • Directional spool valve
    • Manual operation
    Refine selection
    Setting range P [bar] Flow rate range for product family [l/min] Design Product family
    0 - 350 0 - 75 Manifold-mounted 4WMH 6 J To the product
    0 - 320 0 - 150 Manifold-mounted 4WMH 10 J To the product
