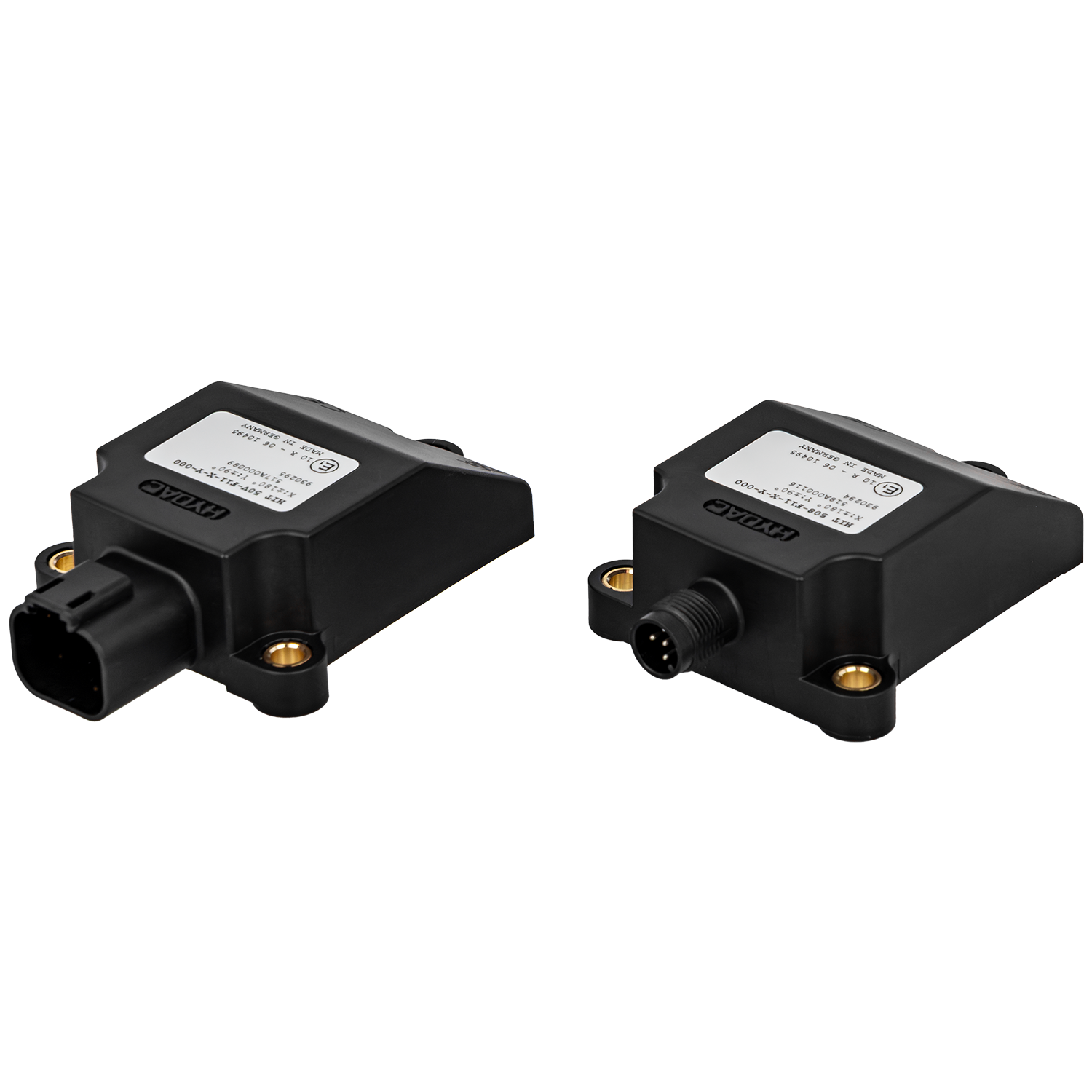

HIT 500 – compact, dynamic inclination sensor
- Compact, robust housing with easy attachment
- Measuring range, longitudinal +/- 180°, lateral +/- 90°
- Accuracy, typ. 0.1°; max. 0.2°
- 3-axis MEMS acceleration +/- 30 m/s²
- 3-axis MEMS angular velocity +/- 250 °/s
- CANopen / SAE J1939
- Plug connector
- 1 * DEUTSCH® DT04-4P
- 1 * M12x1 5pol
- Process values
- Static inclination 2 axes
Dynamic inclination 2 axes
2 filter versions to choose from - Acceleration 3 axes
- Angular velocity 3 axes
- Static inclination 2 axes
